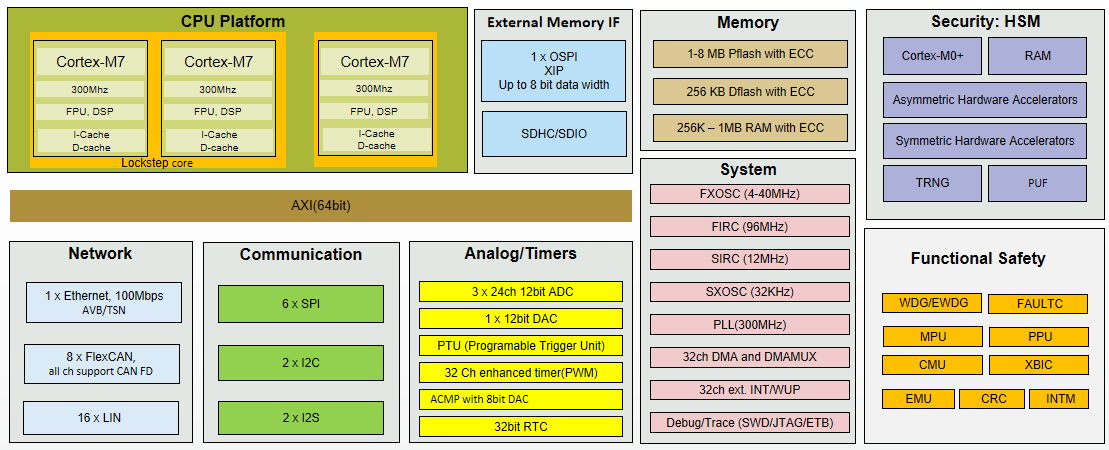

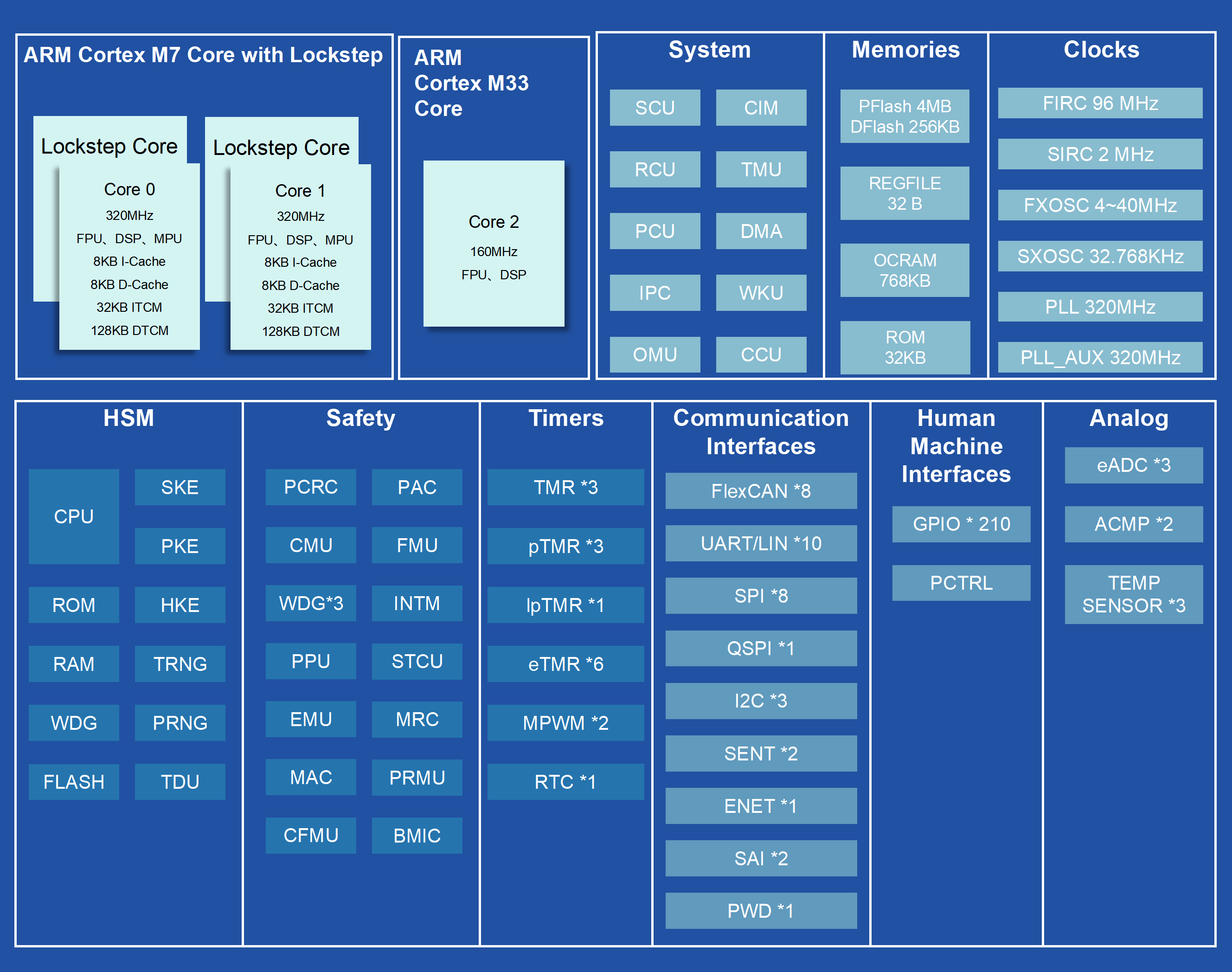

YTM32B1H Block Diagram

  • High Performance

    • ARM Cortex Lockstep M7*2@300MHz
    • 32-ch DMA support
    • TCM and I/D cache

  • Rich Peripheries

    • FlexCAN with FD/LinFlex/IIC/SPI/SENT/I3C
    • EtherNET GMAC
    • QSPI with XIP
    • 12bit ADC with programmable trigger
    • Analog comparator w/ DAC
    • Timers: eTMR, pTMR, lpTMR, TMR, RTC

  • Functional Safety ISO-26262 ASIL-D

    • Dual Core Lockstep
    • ECC for all Memories
    • Clock/Power Monitor
    • MPU/PPU/CRC and hardware Fault control

  • Security

    • HSM support AES/ECC/RSA/SHA
    • HSM support SM4/SM2/SM3
    • TRNG and Security Key storage
  • Temp. Range:Ta -40 to 125 °C (Tj=150°C)
  • Power Supplies:2.7-5.5 V
  • Packaging:LQFP 144/176 and MBGA 257/289
