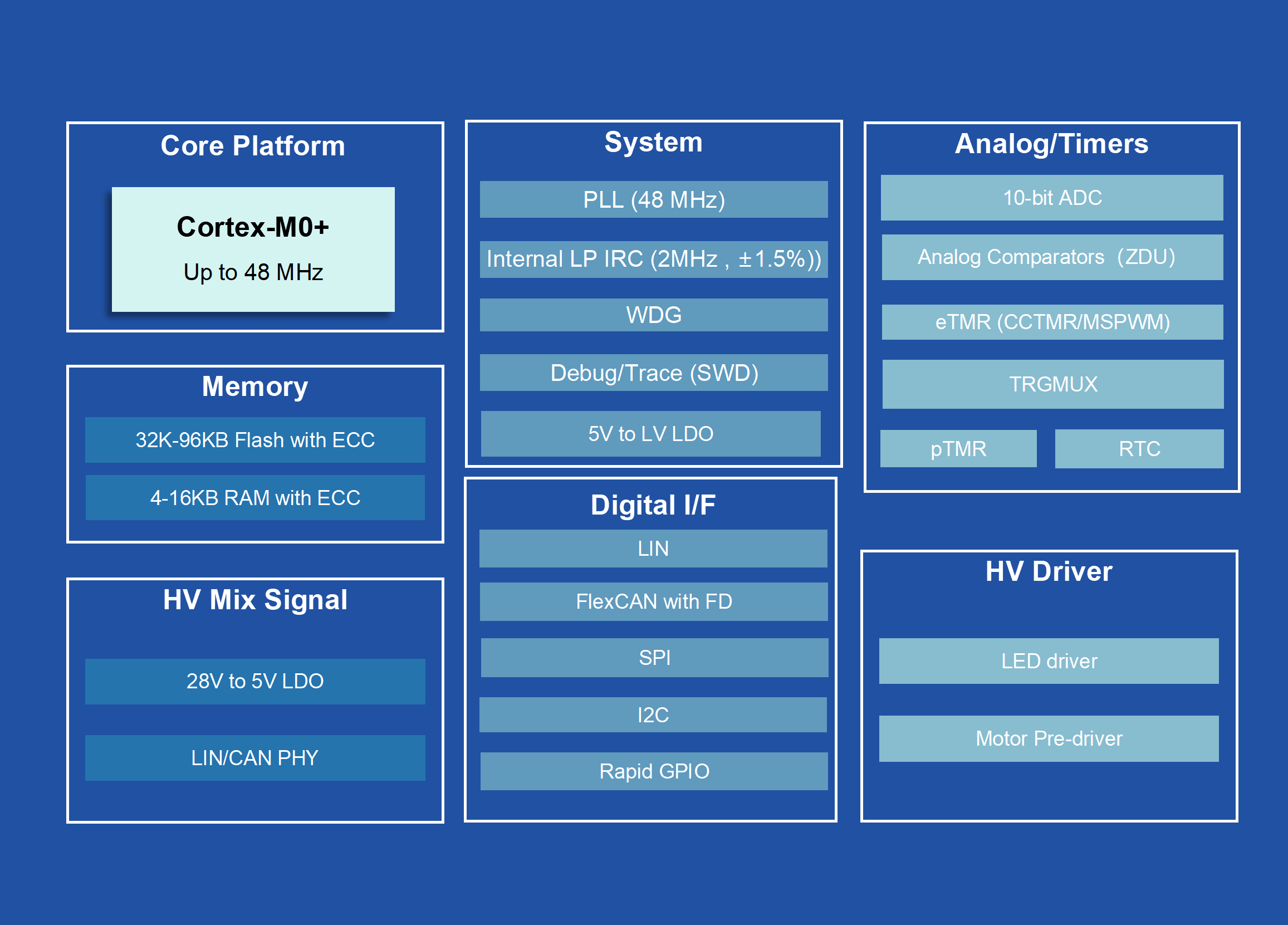

YTM32Z Family Block Diagram

  • High Performance

    • ARM Cortex M0+ up to 48MHz
    • 32-64 KB ECC Flash, 4-8 KB ECC RAM
  • Rich Peripheries

    • FlexCAN with FD support
    • SPI/UART/I2C and Rapid GPIO
    • 12bit ADC and ACMP
    • eTMR supports various motor applications
  • High Voltage Analog Integration

    • HV LDO
    • LIN/CAN PHY
    • LED driver or Motor Pre-driver
  • Temp. Range:Ta -40 to 125°C (Tj=150°C)
  • Power Supplies:12-24 V
  • Packaging:20 TSOP/32 LQFP
