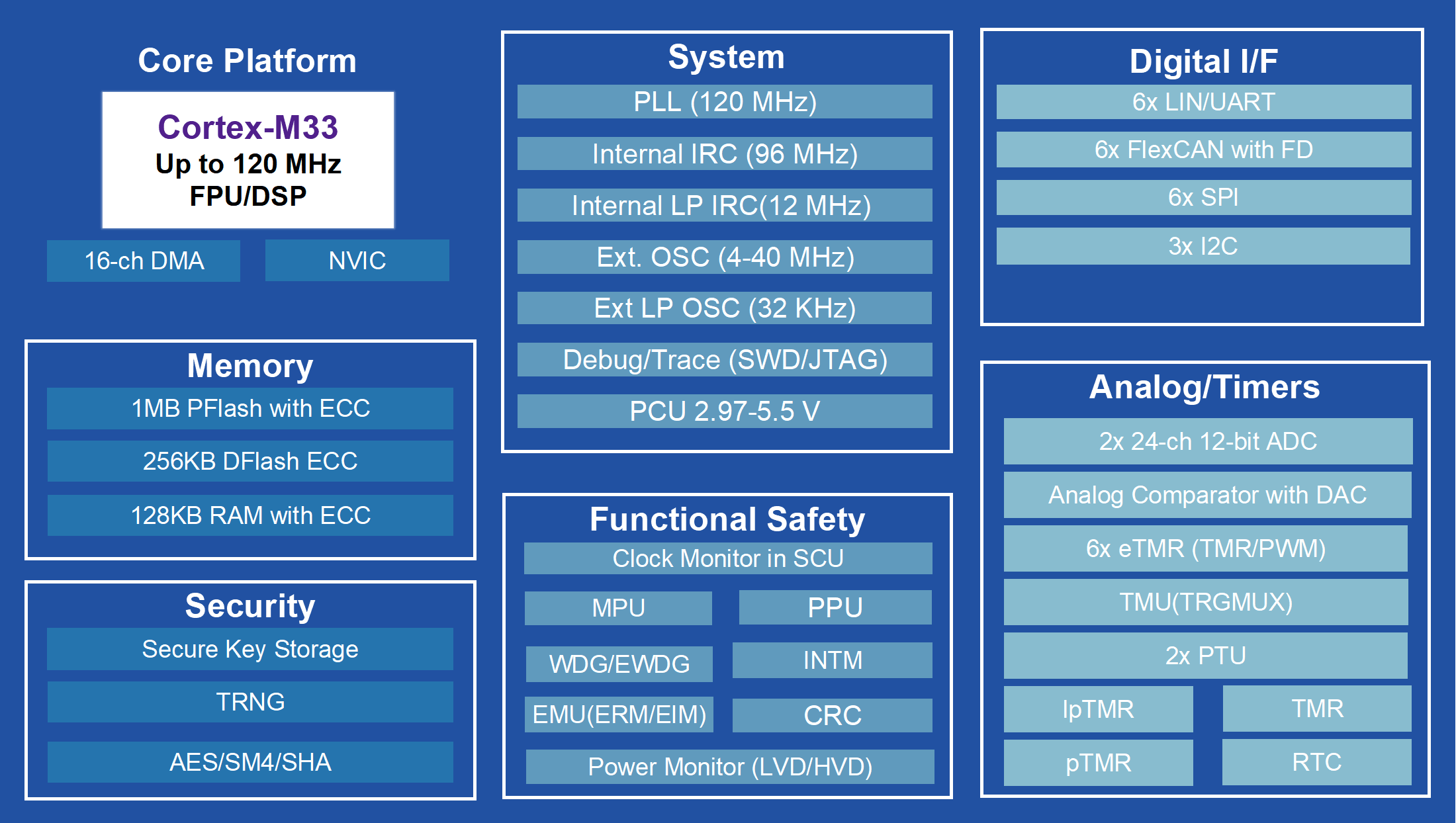

YTM32B1M Family Block Diagram

Data sheet

YTM32B1MC0x

查看详情 →

YTM32B1MD1x

查看详情 →

YTM32B1ME0x

查看详情 →

High Performance

  • ARM Cortex M33 up to 120MHz with FPU/DSP
  • 16-ch DMA support

Rich Peripheries

  • FlexCAN with FD support
  • LinFlexD/IIC/SPI/SENT
  • 12bit ADC with programmable trigger
  • Analog comparator with DAC
  • Multiple Timers: eTMR, pTMR, lpTMR, TMR, RTC

Functional Safety ISO-26262 ASIL-B

  • ECC for Flash and RAM w/ Error injection and record
  • Clock/Power Monitor
  • MPU/CRC and peripheries protection unit

Security

  • Up to 32x secure keys storage
  • AES/SM4/SHA/TRNG

Temp. Range

  • Ta -40 to 125°C (Tj=150°C)

Power Supplies

  • 2.7-5.5 V

Packaging

  • LQFP 64/100/144
